상세 설명

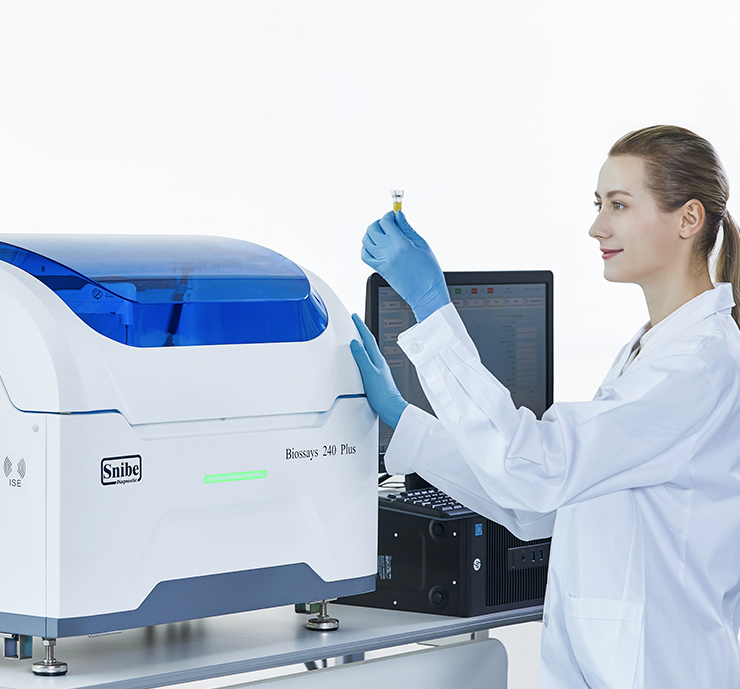

 장비 설명

      ● Throughput: Constant 240 tests/hour

     ● 24 hours ready to use

 Specification

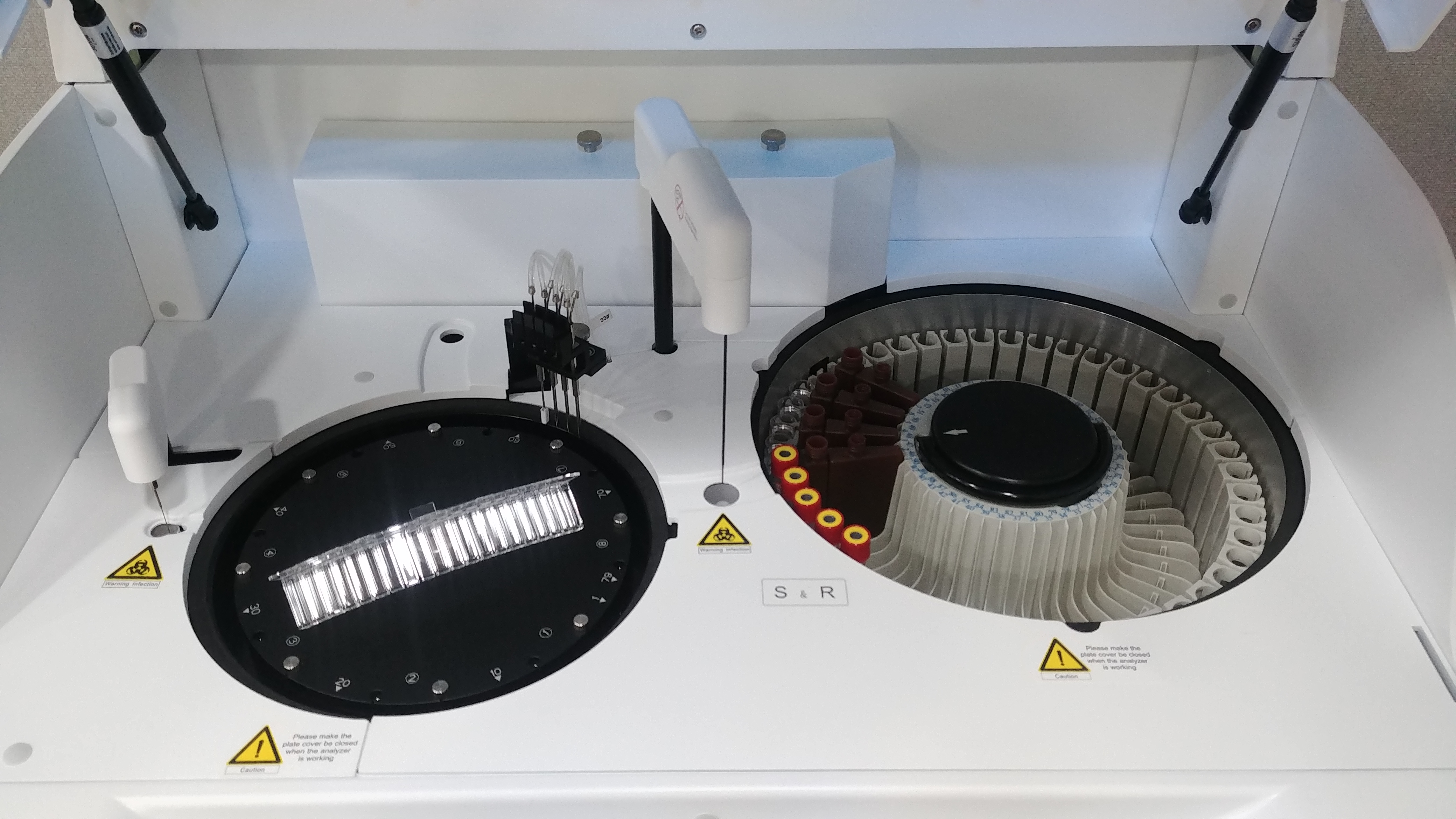

   Sample Module

     ● Up to 90 sample positions can be loaded continuously on sample disk with barcode recognition

     ● Micropipette technology, sample volume per test can be reduced to 3.0 μL

     ● Batch, Random access, STAT channel available

   Reagent Handing

     ● Reagent disk has up to 90 reagent positions, temperature 2℃-10℃, with reagent barcode reader

     ● Reagent inventory real-time detection, display the remaining number of tests

     ● Automatic reagent replace function, applied to examination system for mass inspection

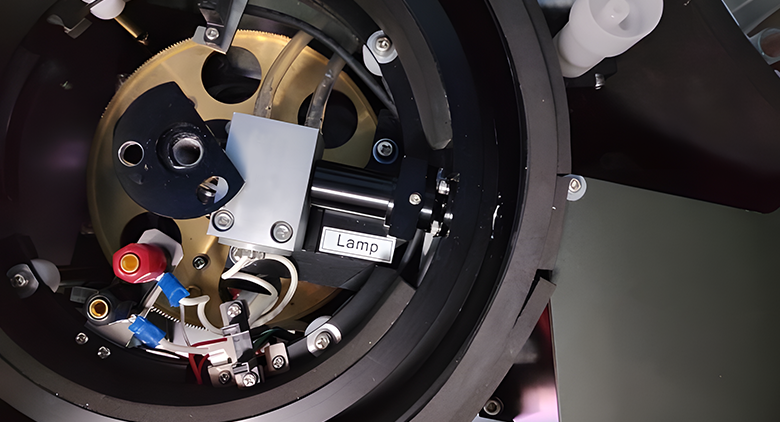

   Photometer System

     ● Holographic concavity flat field grating, rear spectroscopy technology

     ● Wavelength range: 340-800 nm, simultaneously on the 16 wavelengths for detection

     ● Stable optical path detection system, wide absorbance linear range, high resolution ratio

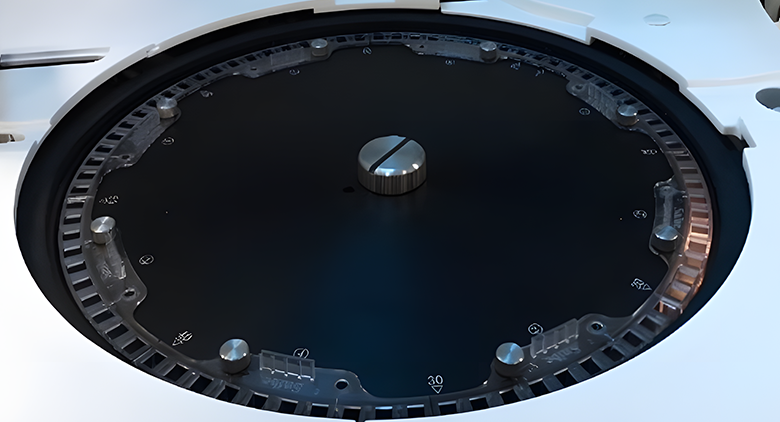

  Constant Temperature System

     ● 80 reaction cups totally

     ● Constant temperature by solid phase system, makes temperature stable

     ● Real-time temperature monitoring, displaying and alerting function

  Operating System

     ● Full monitoring, flexibility and convenience, touch screen (option)

     ● LIS interface, via ethernet, bidirectional communication

     ♣    Brochure Download

         Biossays-240-Plus.pdf
